Environmentally friendly dust-free rotating blade paper tube crusher
Dust-free paper tube crusher is environmentally friendly and used for recycling materials

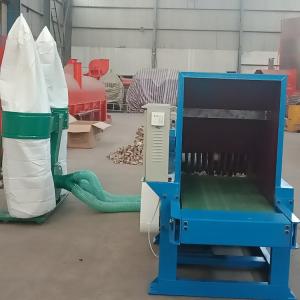

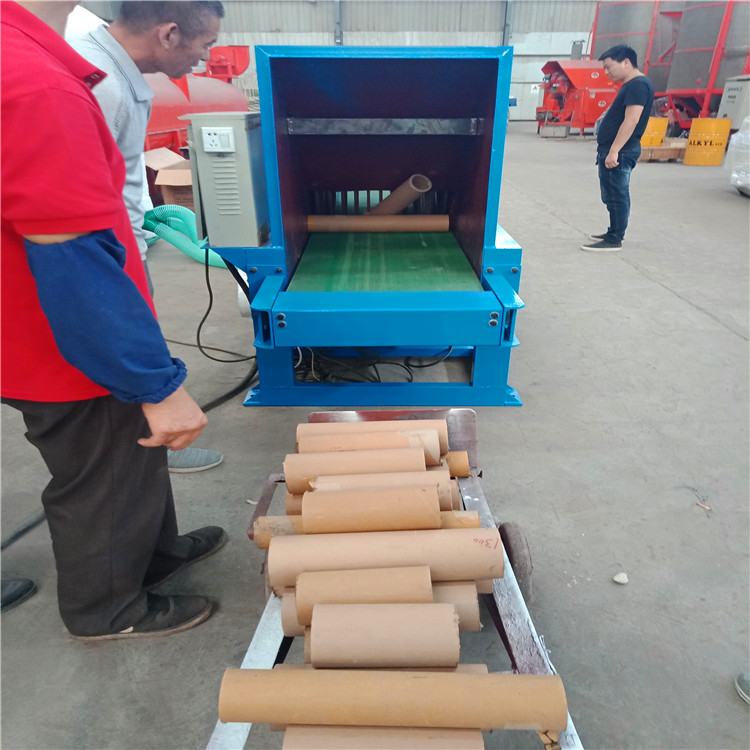

Paper tube (paper tube) shredder: this machine is a kind of machine which uses high-speed rotating blade to smash materials.It has the characteristics of simple structure, strong generality, high productivity and safety.In the crushing chamber, the rotor rotates at a high speed, and the material is crushed into fragments by cutting of the blade and friction action of the tooth plate, which is thrown out from the front of the machine, and then sucked by a centrifugal fan to the storage bag or the collecting chamber.
Technical Data:
| Name | Paper tube shredder |
| Model | 2060 |
| Maximum crushing diameter | 20cm |
| Maximum crushing length | 60cm |
| The total power | 16.5kw+2.2kw(dust catcher) |
| cutter diameter | 600mm |
| rotate speed | 560 r/min |
| Dimension(L*W*H) | 3860*1000*1450mm |
| Capacity | 2-3t/h |
| Weight | 1600 kg |
Quality Features Of The Hot Sale Paper Tube Shredder
1.Automatic running from start to ending
2.Containus running
3.Preventetive system for wood jamming
4.Shaving deepth can be adjusted
5.Two motor drive
6.UK safety standard
With the rise of the concept of environmental protection, all industries are strengthening the recycling of waste.The method of crushing the waste, then compressing, packing and reprocessing is the mainstream method at present.Especially in the treatment of paper tube, paper core, cardboard and other high recycling value of waste, paper packaging enterprises recognized.
Paper tube crusher is suitable for the crushing and recycling of large corrugated board produced by paper core tube, corrugated board and die cutting. After crushing, the cardboard and paper tube are in pieces rather than traditional blocks, and then compressed and packed by fan suction packer.It is an all-in-one crushing machine specially designed for paperboard and paper tube, with high efficiency, high handling capacity, simple manual operation, and high safety and efficiency.
Paper tube crusher has the advantages of strong crushing capacity, high output, low noise, suitable for paper tube, paper core, paperboard, books and thick waste paper after manual cleaning, it is difficult to compress and pack materials for crushing, and then enter the packer to compress and pack.

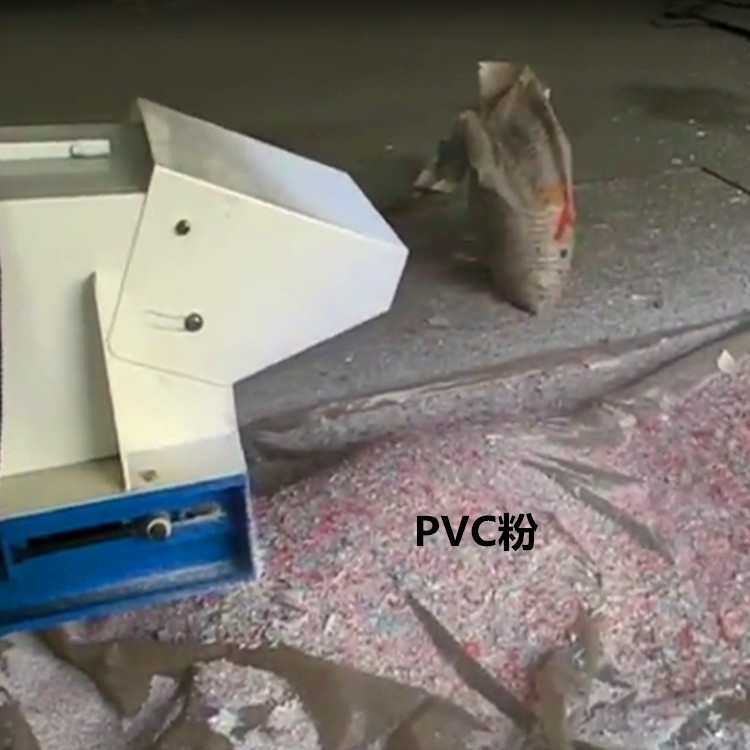

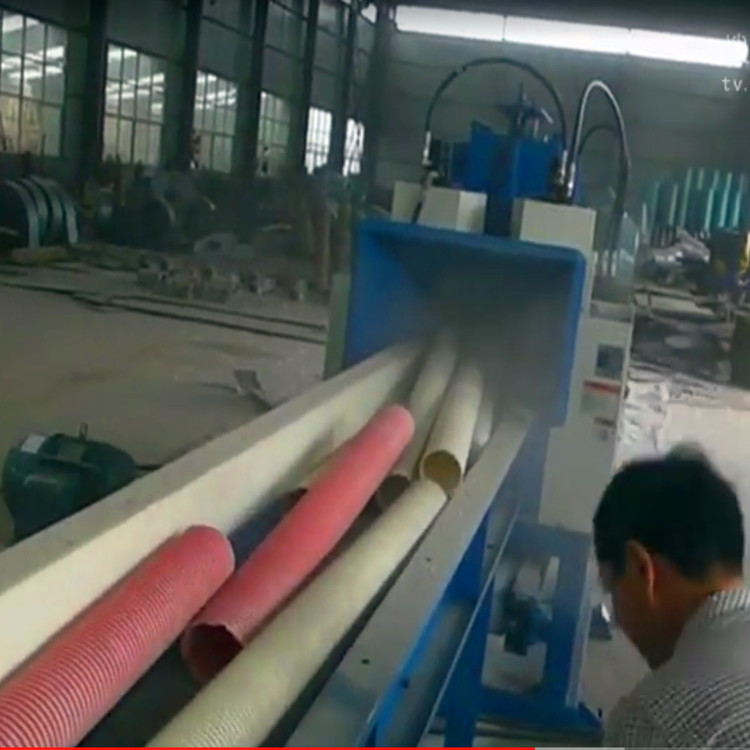

Paper tube crusher is mainly used to crush all kinds of waste paper, paper, cardboard, paper tube, paper core, waste cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, cardboard, hard paper, corrugated paper, edge material, PVC pipe, PVC board, etc.Discharging size can be adjusted according to user's requirement.The paper tube crusher is beautiful in appearance, strong and durable, high in output, and the efficiency of the traditional paper tube crusher is not comparable, it is an efficient equipment that no crushing equipment can replace.
The whole set of equipment remove the knife without wearing parts, simple maintenance, easy to operate!(Note) tool durability rate, within one year, no need to replace!
Before the machine leaves the factory, the installation and debugging are completed, the connection line label is clear, and the production can be done after the customer receives the electricity, saving the time of waiting for the installation personnel to arrive at the factory.
